Diamond 400 for Working Products
As its name implies, the Diamond 400 Series has a tough, durable coating. Also featuring excellent abrasion resistance, the Diamond Series is the perfect webbing for driving harnesses and adjustable straps. See the various colors and profiles available for this coated webbing product.
Great for: Collars LeashesColor Options

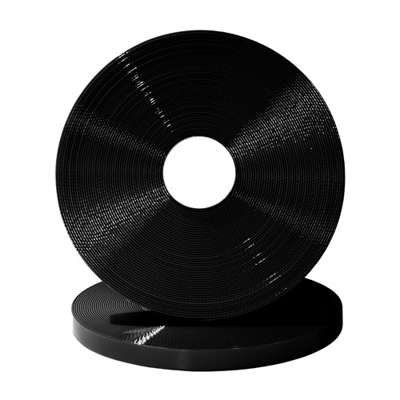

Black (BL401)
Black (BL401)
*All colors shown are digital representations and may vary from actual coating color.
Width and Profile Options
| Width | Profile | Thickness | Break Strength (* See footnote below) | Buckle Pull Strength (** See footnote below) |
|---|---|---|---|---|
|
 B10 High Flex |
.075" - .085", 1.91mm - 2.16mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
|
 B10 Standard |
.095" - .105", 2.41mm - 2.67mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
|
B10 High Flex |
.075" - .085", 1.91mm - 2.16mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
|
B10 Standard |
.095" - .105", 2.41mm - 2.67mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
|
* Break strength value is per inch of width. Example 2″ (50.8mm) is 2000lbs (907.1847kg) or 3/4″ (19.05mm) is 750lbs (340.194kg). ** All Buckle Pull Strength values are based on a 1″ wide specimen. |
||||
All items are put up in 100 foot rolls with a maximum of 2 splices (cuts) per roll. Exceptions are Beaded and Quarter Thick products which are put up in 50 foot rolls with a maximum of 1 splice per 50 foot roll, and Ultra Thin products which are put up in 200 foot rolls with a maximum of 3 splices per 200 foot roll.
